| Manufacturer | Resonac (Hitachi Chemical) |
| Product Model | WP-2854 |
Resonac WP-2854 is a solvent-free varnish for high-speed stators and rotors of home appliances and power tools. With strong fixing power at high temperature, 30% stronger than the industry's comparable specifications.
High adhesion and fast hardening.
Being suitable for home appliances and electric tools.
Varnish for drip impregnation of high-speed rotating rotor coils.
Strong fixation at high temperature (150℃).
Complying with UL Class H (180℃)
Specification Table：
Suggestion: Better to use with Showa Denko S-PS(thinner) and CT-48 (Catalyst, curing agent)
Package： 18Kg/barrel

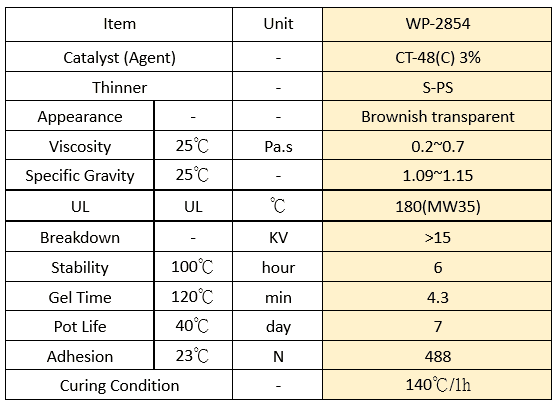

Specifications
| Item | Condition | WP-2854 |
|---|---|---|
| Catalyst (Agent) | – | CT-48(C) 3% |
| Thinner | – | S-PS |
| Appearance | – | Brownish transparent |
| Viscosity | 25 ℃ (Pa·s) | 0.2~0.7 |
| Specific Gravity | 25 ℃ | 1.09~1.15 |
| UL | ℃ | 180 (MW35) |
| Breakdown | kV | >15 |
| Stability | 100 ℃ (hour) | 6 |
| Gel Time | 120 ℃ (min) | 4.3 |
| Pot Life | 40 ℃ (day) | 7 |
| Adhesion | 23 ℃ (N) | 488 |
| Curing Condition | – | 140 ℃ / 1h |
